Description
The CL255 is part of the Codelocks CL200 series, it is a light duty Mortice latch with dual backplate and key override facility, useful for cleaning and security staff. The key overrides the codes.
The latch is spring loaded and will lock automatically when the door is closed. The latch bolt has a deadlocking plunger feature to prevent unlawful shimming of the latch. The lock has a slide button which can be used to hold open the latchbolt for free entry without operating the code (when the lock is not required to be operational). Function can be disabled on installation requiring code to be entered every time to open door. TThese products are suitable for use on FD30 and FD60 fire doors, to achieve the fire rating these digital locks must be fitted with the appropriate intumescent pack, please see associated products.
Weather resistant PVD
Suits 35-65mm thick doors
Protective clutch mechanism
Mortice latch with hold open and key override

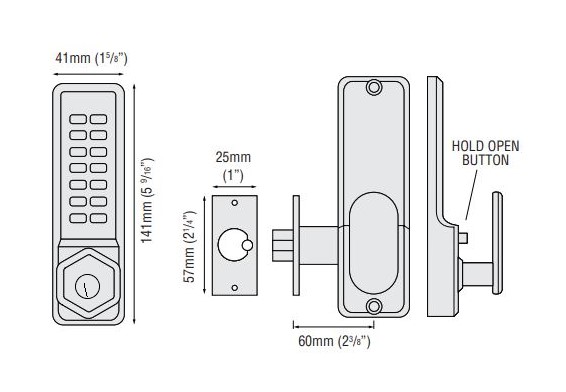

Width: 41mm
Backset: 60mm
Case Depth Required: 85mm
Buttons: 14
Combination: 1,000+
Holdback: Yes
Key Override: Yes
Passage Set: No
Weather Resistant: Yes
Code Length: 4 To 6 Digits
Codes: 1
Operation Inside: Thumbturn Free Exit
Operation Outside: Thumbturn On Entry Of Code
Handed: Reversible
Keys Supplied: 3
Latch: 60mm Standard
Notes: To achieve the fire rating these digital locks must be fitted with the appropriate intumescent pack.
Fire Tested: 1 Hour
Weight: 1.28Kg
This item is available whilst stocks last. Please contact us for availability of additional stock.
