Description

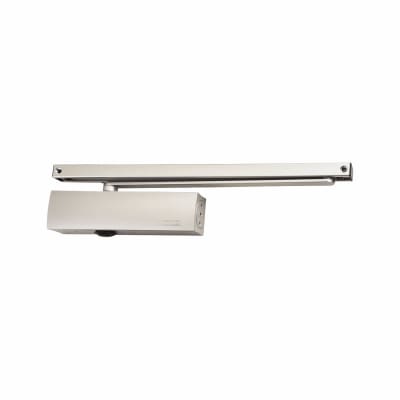

Closer body TS 5000
Closing force in accordance with EN 1154: EN 2 – 6
Leaf width (max.): 1400 mm

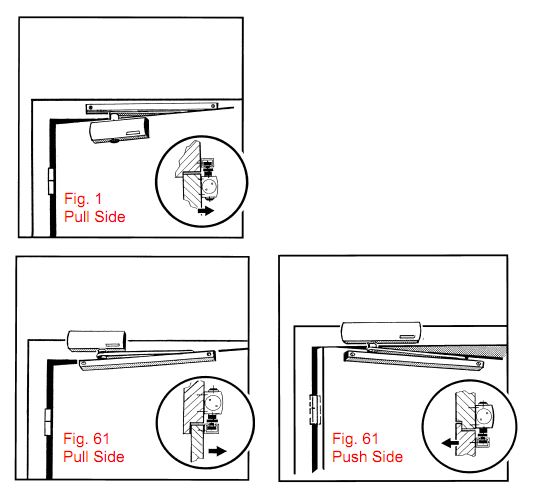

Type of installation: Door leaf installation hinge side, Transom installation
opposite hinge side
Opening angle (max.): 180 °
Identical design for DIN left and DIN right: Yes
Standard conformity: EN 1154:1996/A1:2002/AC:2006
Suitability for fire protection doors: Yes

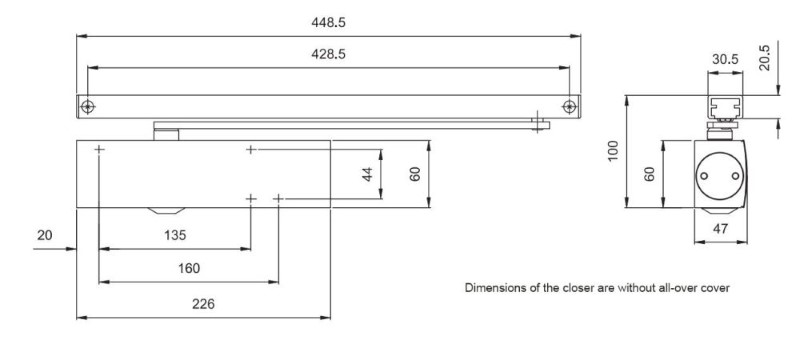

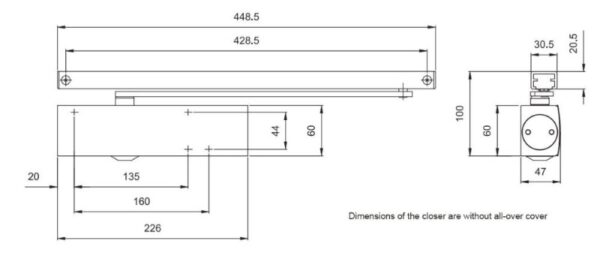

Length: 287 mm
Width: 47 mm
Height: 60 mm
Closing force adjustable: Yes, stepless
Adjustable closing speed: Yes
Latching action adjustable: Yes, via valve
Back check integrated: Yes, hydraulically adjustable
Position of closing force adjustment: Front
Visual closing force display: Yes
Safety valve againts overload: Yes
Thermo-control valves: Yes
Application Areas:
Fire and smoke protection doors
Right and left single-action doors
Single-action doors up to 1400 mm leaf width
Door leaf installation hinge side and transom installation opposite hinge side
Guide rail TS 5000 / 3000
Length: 448.5 mm
Width: 30.5 mm
Height: 20.5 mm
opening restrictor upgradable: Yes
Hold-open function: Optional
Hold-open device can be overridden: Yes
Application areas:
Single leaf doors
Door leaf installation hinge side
Transom installation hinge and opposite hinge side
Right and left single-action doors
Cover
With satin stainless steel TS 3000 half radius designer cover
This item is available whilst stocks last. Please contact us for availability of additional stock.
