Description

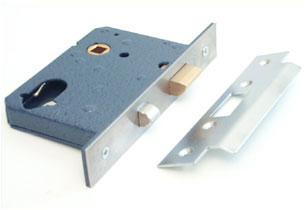

G7088 Dual-Profile Cylinder Mortice Night Latch with Anti-thrust Bolt
Suitable for use on external entrance wooden hinged door providing automatic locking complete with hold back function.
.
Latchbolt operated by key from outside and lever handle or turn knob inside using a single cylinder or by key from either side using a double cylinder.
When the door is shut the bolt is locked against end pressure.
The bolt may be held in the withdrawn position by means of a reverse turn of the key.
Use with turn operated cylinders is not recommended.
Comes with striker plate and fixing screws.
CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209.

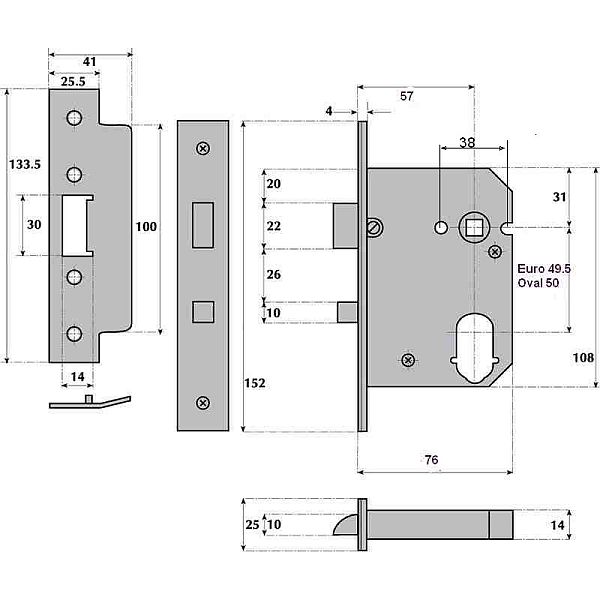

Lock case: 76mm
Backset: 57mm
centres Euro 49.5mm OVAL 50mm
