Description

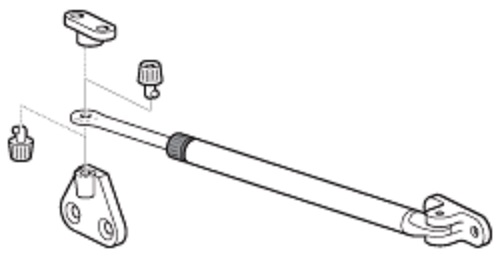

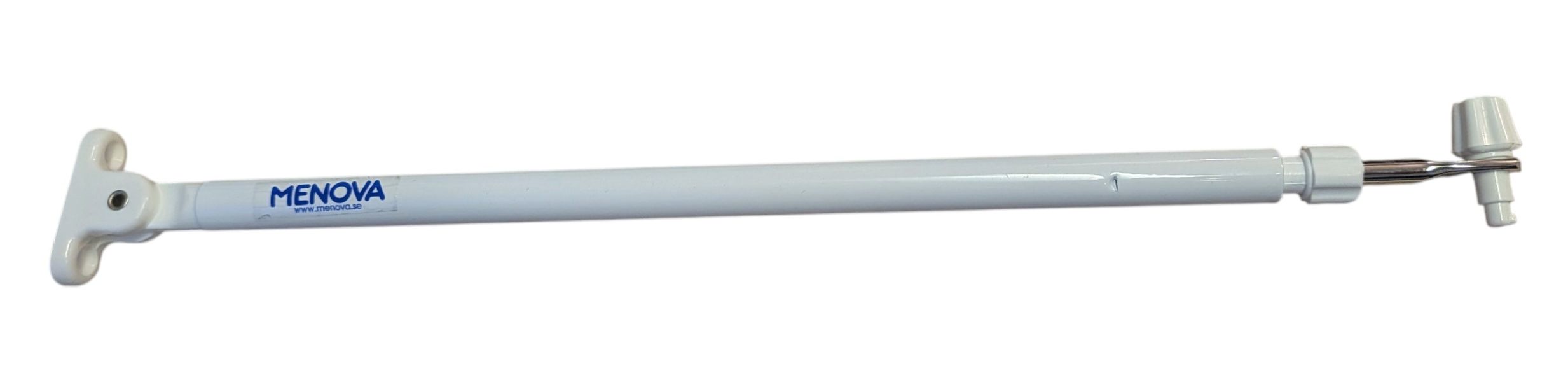

Menova1124 telescopic friction stay for use with the in or out opening fixing plates (R1178 & R1179 sold separately). Designed to hold a window/door open. Suitable for Aluminium, Timber and PVCu in or out opening windows and doors.
Recommended max. opening angle is 90 degrees. Reduced opening can be achieved by re-positioning the stay. Bayonet stud fix to plate allows disconnection.
Construction:
Body – Aluminium with steel rod
Ancillaries – polyamide
Care should be taken to ensure that the bayonet catch is always to the hinge side of the window. Installation of the stay can be either at the top or bottom of the window or at the top of doors. Adjustable friction.
Finish: White.
FIXING PLATE SOLD SEPERATELY.
315mm – 515mm telescopic friction stay
