Description

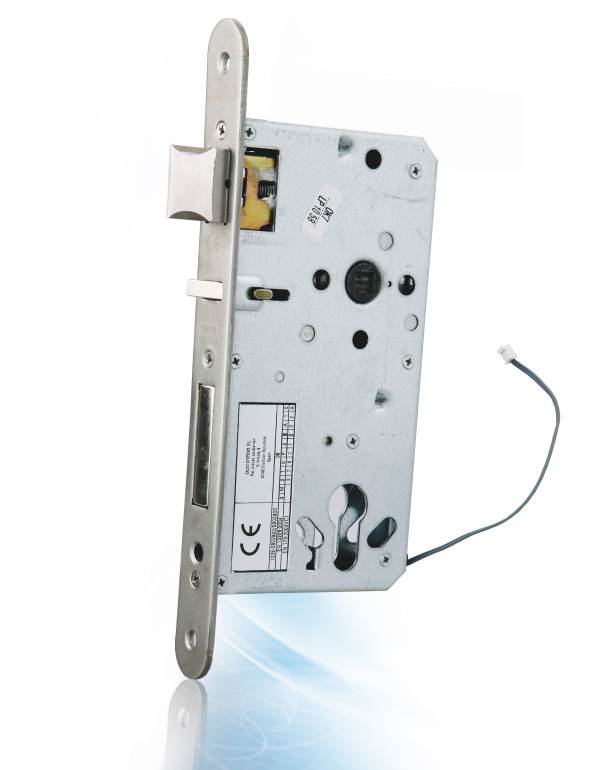

The XS4 Euro lock mortise Escape lock with auto latch projection, deadlocking when the door is closed. Double throw deadbolt operated by thumbturn. Turn opens both bolt & latch. Lever withdraws latch and deadboilt (escape function). Suitable for wooden doors. Latch projection function increases security by making it impossible to gain access by using plastic cards

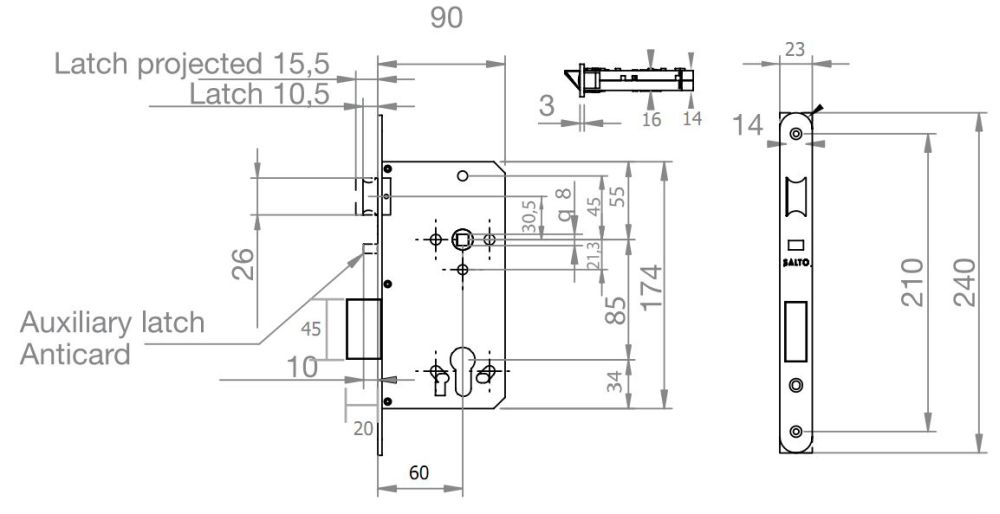

Handle- cylinder ctr. 85mm. Backset 60mm
Compatible with Euro profile mechanical cylinders

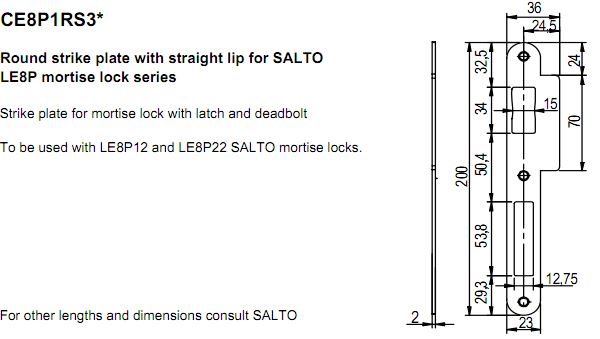

23mm wide, radius forend with strike. Deadbolt privacy detector/cable. Satin stainless steel finish
Turning angle: 28ΒΊ
Reversible latch. Use 1 x our product code MANINTSALTO Intumescent for FD30/60 on Salto XS4 & XS4 Mini & 2 for XS4 ONE.
