Description

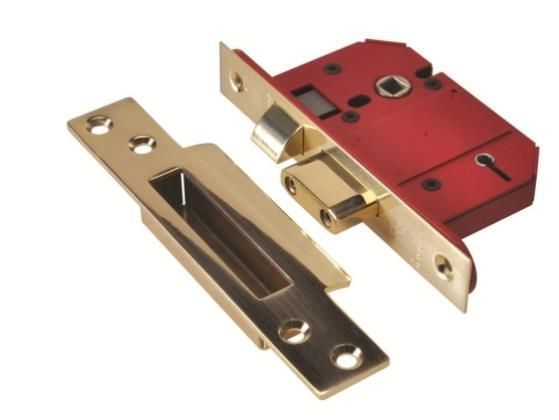

BS 5 Lever Sashlock
Application: For timber doors hinged on the left or right. Suitable for doors up to 54mm thick
Specification:
Chamfered bolt design increases the performance of the lock under side load testing. The chamfer of the bolt also makes drilling attack more difficult
Anti-pick, anti-saw and anti-drill security features for resistance against attack
Radius inner forend for ease of installation
Can be installed in the many UK mortices without the need for additional carpentry or spoiling the edge of the door
Anti-pick and keyhole protection prevents forced entry by picking
Hardened steel pins provide resistance to attack from sawing
Deadbolt locked or unlocked by the key from either side
20mm deadbolt for secure positive deadlocking and additional resistance against attack
2200S can be keyed alike with 2100S

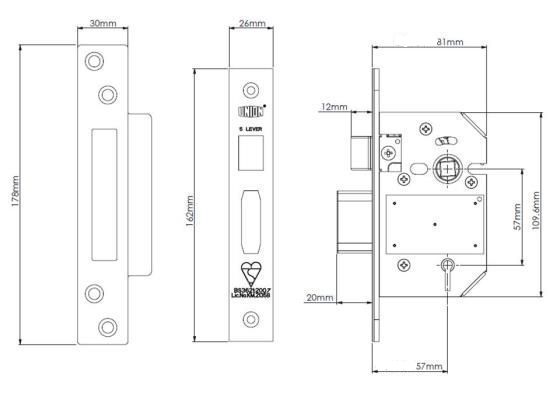

Case Size: 81mm (3in)
Backset: 57mm
Case: Steel, red powder coat
Forend: Satin stainless steel
Striking Plate: Finished to match forend
Faceplate: Supplied with square faceplate which covers a radius inner forend
Deadbolt: Zinc with hardened steel rollers
Latch Bolt: Zinc
Follower: Sintered Steel
Rebate Kit: 2200REB 13mm (0.5in)
Supplied with 2 steel nickel plated keys
Polished Brass finish
Standards:
Tested to BS3621:2007
New EC Cert No 2797-CPR-590961
